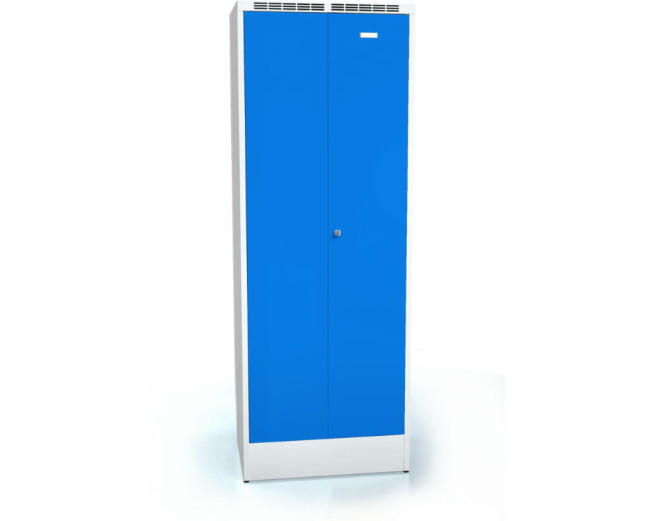

Workshop locker

A workshop locker for the changing room must fulfil various requirements in order to be used without restriction in many areas of application. Perfect workmanship and practical features as well as an attractive design combined with an unbeatable price-performance ratio are the most important quality requirements at DIVIKOM. More information about our changing room lockers.

The entire body and all door panels are made of high-quality sheet steel. A baked-on powder coating serves three purposes at once: it is scratch and abrasion resistant, emphasises the design and ensures corrosion protection.
The outstanding quality features of our top product also include innovative solutions with a high level of functionality, such as

• Targeted functions to prevent break-in attempts
• Double-walled doors to prevent twisting
• Effective and natural ventilation system
• Extendable with feet
• Underframe ramen with bench
• State-of-the-art mechanical and electronic locking systems
• Versions for black/white separation or dual use

Torsion-resistant, double-walled doors



Robust door opening limiter



Sheet steel doubled in the lock area



Effective and natural ventilation system with chimney effect



Features of the workshop locker

exterior dimensions:
1920x700x500 mm (HxWxD)
internal dimensions with section width 350 mm
Clear opening width with door open approx. 270 mm
Usable width inside approx. 348 mm
Usable depth inside approx. 480 mm

TOP SAFETY:
- Double-walled doors highly resistant to torsion and bending loads, door hinges on both sides
- Reinforcement of the door construction in the lock area - protection against the bolt twisting and bending
- Lock with hook bolt - effective protection against the door being forced open
- Door opening limiter - effective protection against damage caused by overstretching the limit position
- Safety twist lock with freewheel function provides a high level of security against forced operation

HOUSING:
- Sturdy, spot-welded sheet steel construction
- Injury-proof design - without sharp edges
- Clean machine processing
- Burglar-resistant, flanged door support surfaces
- Plinth closed on all sides
- Plastic glides

DOORS:
- Double-walled doors approx. 20 mm thick, torsion-resistant design
- Internal pivot bolts
- Door opening limiter with opening angle of approx. 100 degrees
- Noise damping bumpers
- Transparent plastic frame for name badges, size 15×60 mm
- Door with reinforcement of the lock assembly opening
- Hook on the inside of the door

INTERIOR FITTINGS:
- Shelf, welded in place
- Clothes rail with 3 plastic hooks
- Preparation for subsequent assembly of the shoe shelf in the lower section of the cabinet

LOCKING SYSTEM:
- Cylinder lock (2 keys, 4000 combinations, customised for master key) or
- Security twist lock for padlock (suitable for shackle diameter 5-8 mm)
- Bolt with safety hook that improves resistance to door break-out

COLOUR:
- High-quality powder coating
- Easy-care and cigarette fire-resistant surface
- Standard colours: Body light grey RAL7035 / doors light grey RAL7035, light blue RAL5012 without surcharge,
- with surcharge: doors gentian blue RAL5010, yellow RAL1023, red RAL3000, green RAL6024, orange RAL2004, anthracite RAL7016
- Body powder coating with fine structure, matt for better abrasion resistance and appearance

VENTILATION:
- Natural and effective ventilation system: the air goes up and down in the locker (cold and warm air). Hat shelf, bottom, back and upper front part of the cabinet are perforated

INJURY SAFETY:
- all areas are made injury-proof (triple edging, folds, etc.)

COMFORT:
- Mounting openings in sides for mutual connection in rows
- Mounting holes in the rear for mutual connection of rear panel + rear panel
- Ready for retrofitting the plinth or feet
- Accessories (hooks, mirror, box, shoe tray, etc.)
- Holes on the inside of the door for hooks and other accessories
- Height adjustment for levelling (optional)

DAMP-PROOF DESIGN AS AN OPTION
Moisture-proof design is possible according to customer requirements.
- Completely electrolytically galvanised and powder-coated
- for changing rooms in the vicinity of wet rooms
- For rooms with high humidity
- For outdoor use under roof
